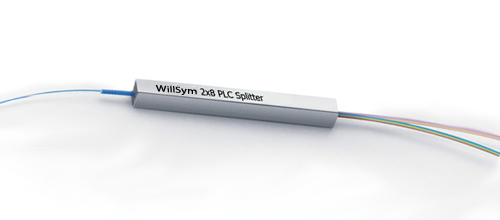

Fused PLC Splitter

Applications:

  • Used in special situation when there is no space to install a box splitter
  • FTTH Fiber to the home
  • PON network
  • CATV
  • Fiber LAN



Features:

  • Low insertion loss
  • Spectral equally
  • Low polarization dependent loss
  • Small size
  • Applicable wavelength: 1260nm~1650nm
  • Conformity with Telcordia GR-1209-CORE and GR-1221-CORE standards and RoHS



Performance Index

1xN PLC Parameters
Parameters 1×2 1×4 1×8 1×16 1×32 1×64
Insertion Loss Max(P/S) 4.1dB/4.4dB 7.4dB/7.7dB 10.5dB/11.0dB 13.8dB/14.2dB 17.1dB/17.5dB 20.5dB/21.0dB
Insertion Uniformilty Max 0.5dB 0.8dB 0.8dB 1.0dB 1.5dB 2.0dB
Return Loss Min 55dB
Polarization Dependent Loss Max 0.3dB 0.5dB
Directivity Min 55dB
Dimension LxWxH 60x12x4 80x20x6 100x40x6
Working Temperature -40°C~+85°C
Working Wavelength 1260nm~1650nm
Length of fiber pigtail 0.5m/1m/1.5m or Customise
Type of fiber pigtail Φ0.9mm
Type of Connector FC/UPC, SC/UPC, LC/UPC, FC/APC, SC/APC, LC/APC or Customise
