Your position: Home » Products/Technology » Patchcord / Pigtail » E2000 Patchcord

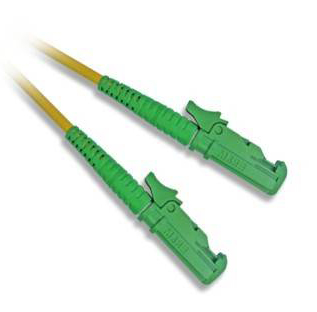

E2000 Patchcord



Applications:

  • CATV
  • Telecom Network
  • Metro
  • Multimedia
  • Data processing
  • Premise installation
  • Gigabit Ethernet



Features:

  • Low insertion loss and back reflection loss
  • Good exchangeability
  • Good durability
  • High temperature stability
  • Standard: Telcordia GR-326-CORE

SPECIFICATION
Descriptions SM(PC) SM(APC) MM(PC)
Insertion loss <0.3dB <0.3dB <0.3dB
Return loss ≥50dB ≥65dB ≥35dB
Repeatability ≤0.1 ≤0.1 ≤0.1
Strain relief 40N
Durability <0.1dB typical change,1000 mating
Interchangeability ≤0.2dB
Operating Temperature – 40℃  to + 80℃
Assembly procedure Glue and polish
Local mechanism Spot-on
Standards EN 186-270
Connector material UL 94-V0
Patchcord
